源码分析之AFNetworking(三)

AFNetworkReachabilityManager网络监听

Posted by Ted on May 26, 2017

五、AFNetworkReachabilityManager

(一)文档翻译

/**

AFNetworkReachabilityManager monitors the reachability of domains, and addresses for both WWAN and WiFi network interfaces.

Reachability can be used to determine background information about why a network operation failed, or to trigger a network operation retrying when a connection is established. It should not be used to prevent a user from initiating a network request, as it’s possible that an initial request may be required to establish reachability.

See Apple’s Reachability Sample Code ( https://developer.apple.com/library/ios/samplecode/reachability/ )

@warning Instances of AFNetworkReachabilityManager must be started with -startMonitoring before reachability status can be determined.

*/

AFNetworkReachabilityManager用于监测domains和addresses的可达性,包括WWAN和WiFi

Reachability模块可以用来监测一个网络活动失败的背景原因,或者当一个连接建立之后,去触发重复请求,它不应该被用来阻止用户初始化一个网络请求,但是初始化一个网络请求需要建立可达性。

AFNetworkReachabilityManager的实例必须启用-startMonitoring才能开始监听状态

(二)状态

typedef NS_ENUM(NSInteger, AFNetworkReachabilityStatus) {
    AFNetworkReachabilityStatusUnknown          = -1,  //未知状态
    AFNetworkReachabilityStatusNotReachable     = 0,   //不可到达状态
    AFNetworkReachabilityStatusReachableViaWWAN = 1,   //蜂窝网络状态
    AFNetworkReachabilityStatusReachableViaWiFi = 2,  //Wifi网络状态
};

可以检测出总共四种状态:未知状态、不可到达状态、蜂窝网络(2G,3G,4G)状态、Wifi网络状态

(三)使用方式

    AFNetworkReachabilityManager *manager = [AFNetworkReachabilityManager sharedManager];
    [manager setReachabilityStatusChangeBlock:^(AFNetworkReachabilityStatus status) {
		NSLog(@"current--%@",[manager localizedNetworkReachabilityStatusString]);
	}];
    [manager startMonitoring];

(四)初始化

有四种类型的初始化方式

Creates and returns a network reachability manager with the default socket address.
 // 监控一个默认的地址
+ (instancetype)manager;


 Creates and returns a network reachability manager for the specified domain.
  // 监控一个默认的地址
+ (instancetype)managerForDomain:(NSString *)domain;

/**
 Creates and returns a network reachability manager for the socket address.
 // 监测指定的地址
+ (instancetype)managerForAddress:(const void *)address;

/**
 Initializes an instance of a network reachability manager from the specified reachability object.
- (instancetype)initWithReachability:(SCNetworkReachabilityRef)reachability;

下面是其中一种方法的实现

+ (instancetype)managerForDomain:(NSString *)domain {
    SCNetworkReachabilityRef reachability = SCNetworkReachabilityCreateWithName(kCFAllocatorDefault, [domain UTF8String]);
    AFNetworkReachabilityManager *manager = [[self alloc] initWithReachability:reachability];
    CFRelease(reachability);
    return manager;
}

可以发现,最终都是要得到SCNetworkReachabilityRef这个东西,这是何许东西?

​ @discussion The SCNetworkReachability API allows an application to

​ determine the status of a system’s current network

​ configuration and the reachability of a target host.

​ In addition, reachability can be monitored with notifications

​ that are sent when the status has changed.

​ “Reachability” reflects whether a data packet, sent by

​ an application into the network stack, can leave the local

​ computer.

SCNetworkReachability可以监测APP的当前网络状态,对于目标host的可达性,当状态发送改变时,reachability可以监测到这个通知。

“Reachability”反应的是,一个数据包是否会离开本机,并不能确保可以被主机收到

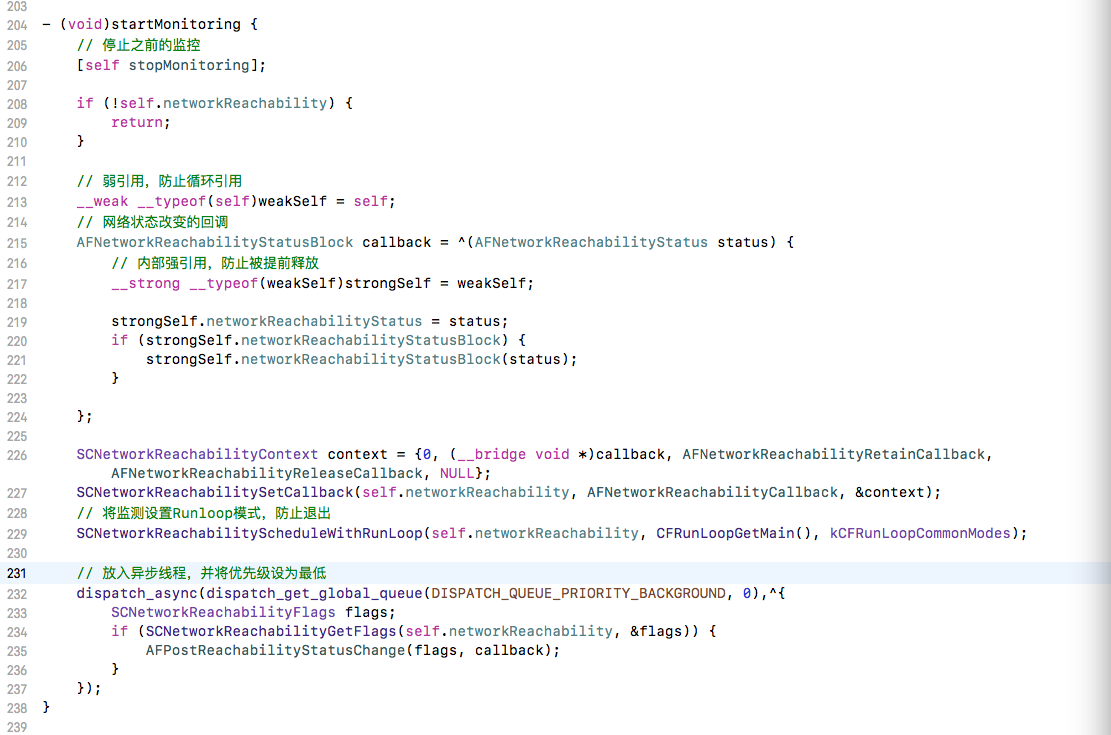

(五)开启监控


里面有两个技术细节:

1、在Block外面调用__weak __typeof(self)weakSelf = self;,目的是防止循环引用,在Block内部调用__strong __typeof(weakSelf)strongSelf = weakSelf;,目的是为了防止weakself被提前释放

2、将整个监测放到异步线程,将优先级设为最低,并且开启了Runloop模式,目的是为了一直监测
